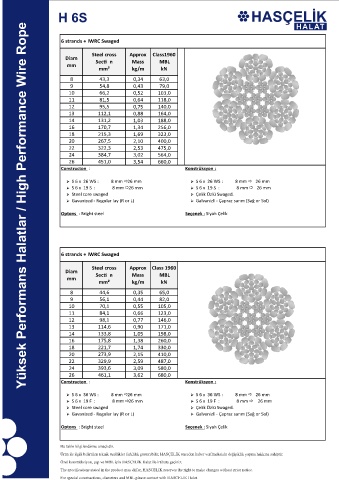

H 6S

6 strands + IWRC Swaged

Steel cross Approx Class1960
Diam
Sec n Mass MBL
mm
mm² kg/m kN
8 43,3 0,34 63,0
9 54,8 0,43 79,0
10 66,2 0,52 103,0
11 81,5 0,64 118,0
12 95,5 0,75 140,0
13 112,1 0,88 164,0
14 131,2 1,03 188,0
16 170,7 1,34 256,0
18 215,3 1,69 323,0
20 267,5 2,10 400,0
22 322,3 2,53 475,0
24 384,7 3,02 564,0
26 451,0 3,54 660,0
Constructon : Konstrüksyon :

➢ S 6 x 26 WS : 8 mm ğ 26 mm ➢ S 6 x 26 WS : 8 mm ğ 26 mm
➢ S 6 x 19 S : 8 mm ğ 26 mm
➢ S 6 x 19 S : 8 mm ğ 26 mm
➢ Çelik Özlü Swaged.
➢ Steel core swaged
➢ Gavanized - Regular lay (R or L) ➢ Galvanizli - Çapraz sarım (Sağ or Sol)
Optons : Bright steel Seçenek : Siyah Çelik

6 strands + IWRC Swaged

Steel cross Approx Class 1960
Diam
Sec n Mass MBL
mm
mm² kg/m kN
8 44,6 0,35 65,0
9 56,1 0,44 82,0
10 70,1 0,55 105,0
11 84,1 0,66 123,0
12 98,1 0,77 146,0
13 114,6 0,90 171,0
14 133,8 1,05 198,0
16 175,8 1,38 260,0
18 221,7 1,74 330,0
20 273,9 2,15 410,0
22 329,9 2,59 487,0
24 393,6 3,09 580,0

26 461,1 3,62 680,0

Constructon : Konstrüksyon :

➢ S 6 x 36 WS : 8 mm ğ 26 mm
➢ S 6 x 36 WS : 8 mm ğ 26 mm
➢ S 6 x 19 F : 8 mm ğ 26 mm ➢ S 6 x 19 F : 8 mm ğ 26 mm
➢ Steel core swaged ➢ Çelik Özlü Swaged.
➢ Gavanized - Regular lay (R or L) ➢ Galvanizli - Çapraz sarım (Sağ or Sol)
Optons : Bright steel Seçenek : Siyah Çelik

Bu tablo b lg lend rme amaçlıdır.

Ürün le lg l bel rt len tekn k özell kler farklılık göstereb l r, HASÇELİK önceden haber ver lmeks z n değ ş kl k yapma hakkına sah pt r.
Özel konstrüks yon, çap ve MBL ç n HASÇELİK Halat le rt bata geç n z.
The spec ficat ons stated n the product may d ffer, HASCELIK reserves the r ght to make changes w thout pr or not ce.
For spec al construct ons, d ameters and MBL please contact w th HASCELIK Halat.
